English
 |
1143
1408.4
External gear
Ball
221
M 061.25.1250.101.21.1503

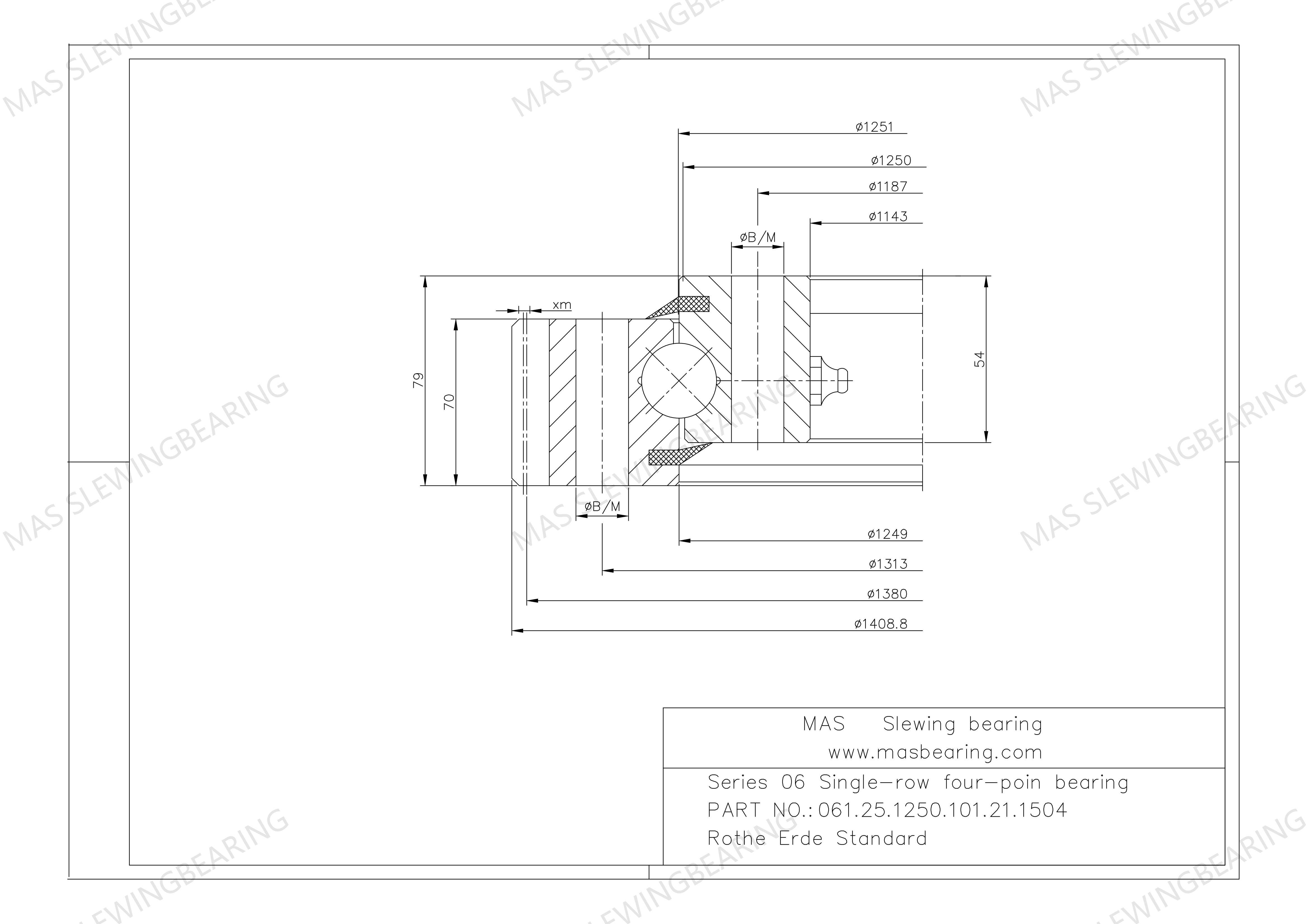

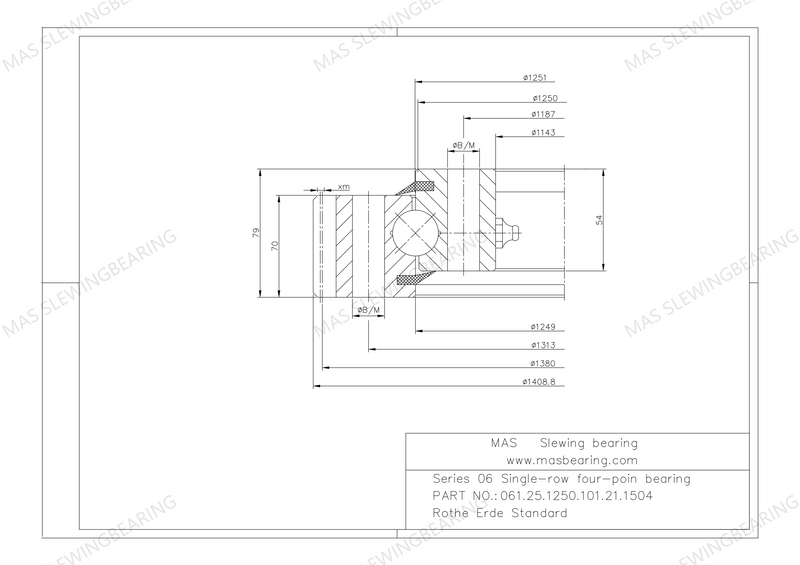

| Rothe Erde PART NO. | 061.25.1250.101.21.1503 |
| MAS PART NO. | M 061.25.1250.101.21.1503 |
| Series | Series 06 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Diameter Of Bearing Raceway Dl(mm) | 1250 |
| Outside Diameter Of Outer Ring Da(mm) | 1408.4 |
| Inside Diameter Of Inner Ring Di(mm) | 1143 |
| Height Of Overall Bearing Assembly H(mm) | 79 |
| External Diameter On Inner Ring O(mm) | 1251 |
| Internal Diameter On Outer Ring U(mm) | 1249 |
| Height Of Outer Ring H1(mm) | 70 |
| Height Of Inner Ring H2(mm) | 54 |
| Distance Between Bottom Outer Ring Inner Ring Hu(mm) | 25 |
| Distance At Top Outer Ring Inner Ring Ho(mm) | 9 |
| Outside Bole Hole Circle Diameter La(mm) | 1313 |
| Intside Bole Hole Circle Diameter Li(mm) | 1187 |
| n | 36 |
| Hole Diameter B(mm) | 22 |
| Hole Diameter M(mm) | 20 |
| Pitch Diameter Of Gear d(mm) | 1380 |
| Tooth Modules m(mm) | 10 |
| Number Of Gear Teeth z | 138 |
| x.m(mm) | ﹢5.0 |
| k.m | -1 |
| Tooth Width b min(mm) | 69 |
| Permissibe Tangential Forces Normal X1kN | 66.67 |
| Permissibe Tangential Forces Maximum X2kN | 133.33 |
| Weight(kg) | 221 |
| Number Of Grease Nipples n1 | 6 |
