649.2
816
Internal gear
Ball
58

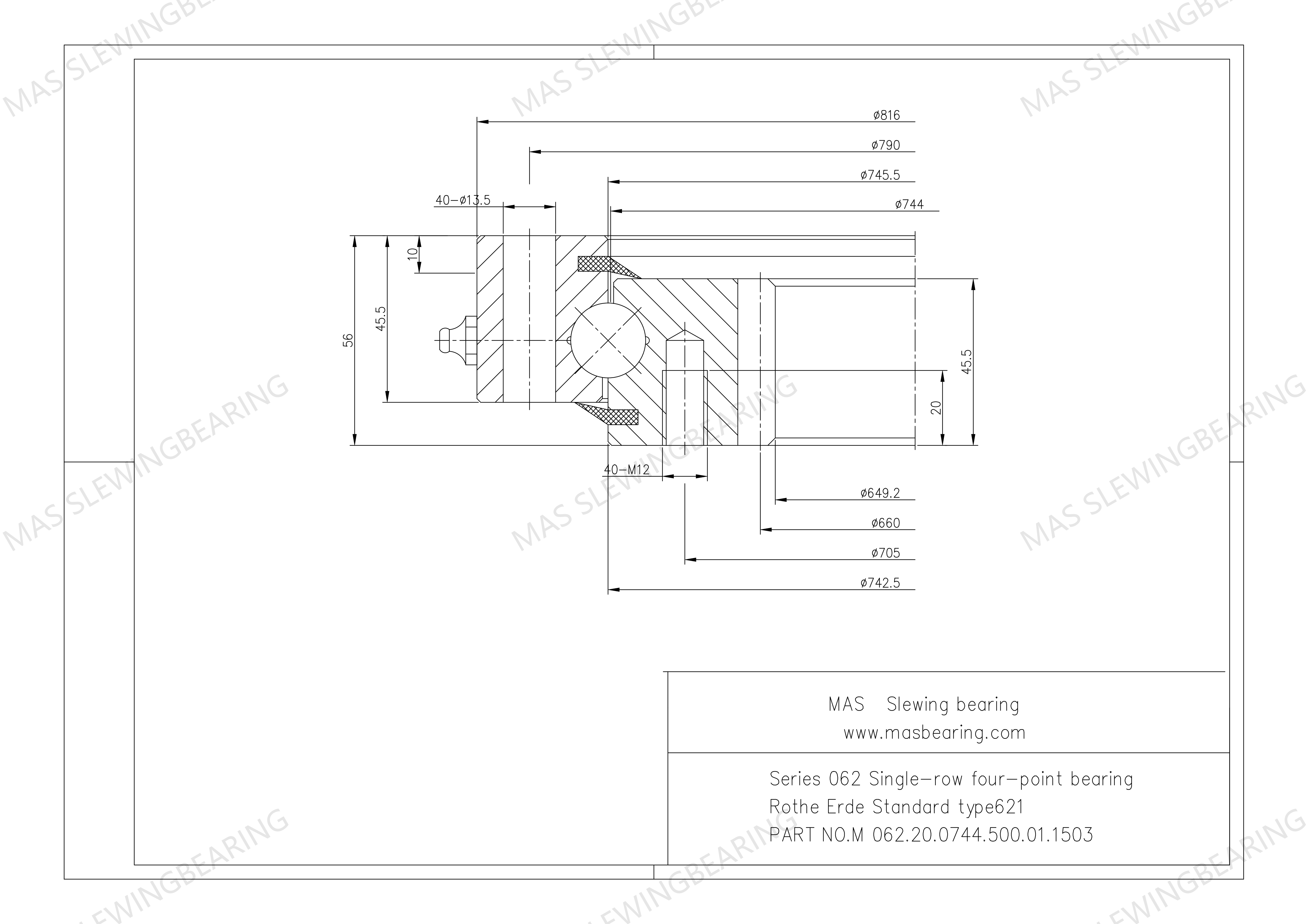

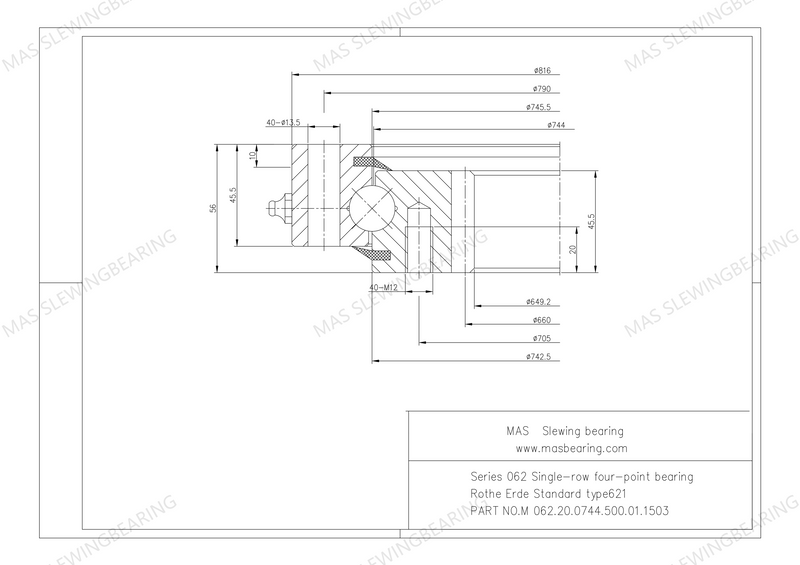

M 062.20.0744.500.01.1503
| Rothe Erde PART NO. | 062.20.0744.500.01.1503 |
| MAS PART NO. | M 062.20.0744.500.01.1503 |
| Series | Series 06 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Diameter Of Bearing Raceway Dl(mm) | 744 |
| Outside Diameter Of Outer Ring Da(mm) | 816 |
| Inside Diameter Of Inner Ring Di(mm) | 649.2 |
| Height Of Overall Bearing Assembly H(mm) | 56 |
| External Diameter On Inner Ring O(mm) | 745.5 |
| Internal Diameter On Outer Ring U(mm) | 742.5 |
| Height Of Outer Ring H1(mm) | 45.5 |
| Height Of Inner Ring H2(mm) | 45.5 |
| Distance Between Bottom Outer Ring Inner Ring Hu(mm) | 10.5 |
| Distance At Top Outer Ring Inner Ring Ho(mm) | 10.5 |
| Outside Bole Hole Circle Diameter La(mm) | 790 |
| Intside Bole Hole Circle Diameter Li(mm) | 705 |
| Number Holes In Inner Ring n | 40 |
| Hole Diameter B(mm) | 13.5 |
| Hole Diameter M(mm) | 12 |
| Thread Depth t(mm) | 20 |
| Pitch Diameter Of Gear d(mm) | 660 |
| Tooth Modules m(mm) | 6 |
| Number Of Gear Teeth z | 110 |
| k.m | -0.6 |
| Tooth Width b(mm) | 45.5 |
| Permissibe Tangential Forces Normal X1kN | 15.32 |
| Permissibe Tangential Forces Maximum X2kN | 30.64 |
| Weight(kg) | 58 |
| Number Of Grease Nipples n1 | 4 |
| Min Axial Tilting Clearance(mm) | ≤0.30 |
| Min Radial Bearing Clearance (mm) | ≤0.30 |
| masbearing@outlook.com | |
| Mob/Wechat | +86 15255522117 |
| Rothe Erde PART NO. | 062.20.0744.500.01.1503 |
| MAS PART NO. | M 062.20.0744.500.01.1503 |
| Series | Series 06 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Diameter Of Bearing Raceway Dl(mm) | 744 |
| Outside Diameter Of Outer Ring Da(mm) | 816 |
| Inside Diameter Of Inner Ring Di(mm) | 649.2 |
| Height Of Overall Bearing Assembly H(mm) | 56 |
| External Diameter On Inner Ring O(mm) | 745.5 |
| Internal Diameter On Outer Ring U(mm) | 742.5 |
| Height Of Outer Ring H1(mm) | 45.5 |
| Height Of Inner Ring H2(mm) | 45.5 |
| Distance Between Bottom Outer Ring Inner Ring Hu(mm) | 10.5 |
| Distance At Top Outer Ring Inner Ring Ho(mm) | 10.5 |
| Outside Bole Hole Circle Diameter La(mm) | 790 |
| Intside Bole Hole Circle Diameter Li(mm) | 705 |
| Number Holes In Inner Ring n | 40 |
| Hole Diameter B(mm) | 13.5 |
| Hole Diameter M(mm) | 12 |
| Thread Depth t(mm) | 20 |
| Pitch Diameter Of Gear d(mm) | 660 |
| Tooth Modules m(mm) | 6 |
| Number Of Gear Teeth z | 110 |
| k.m | -0.6 |
| Tooth Width b(mm) | 45.5 |
| Permissibe Tangential Forces Normal X1kN | 15.32 |
| Permissibe Tangential Forces Maximum X2kN | 30.64 |
| Weight(kg) | 58 |
| Number Of Grease Nipples n1 | 4 |
| Min Axial Tilting Clearance(mm) | ≤0.30 |
| Min Radial Bearing Clearance (mm) | ≤0.30 |
