355
590.4
External gear
Ball
74

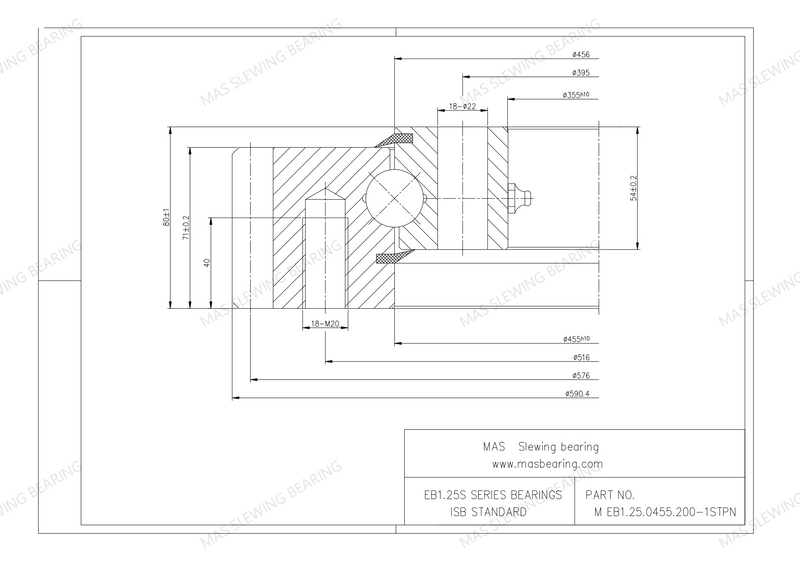

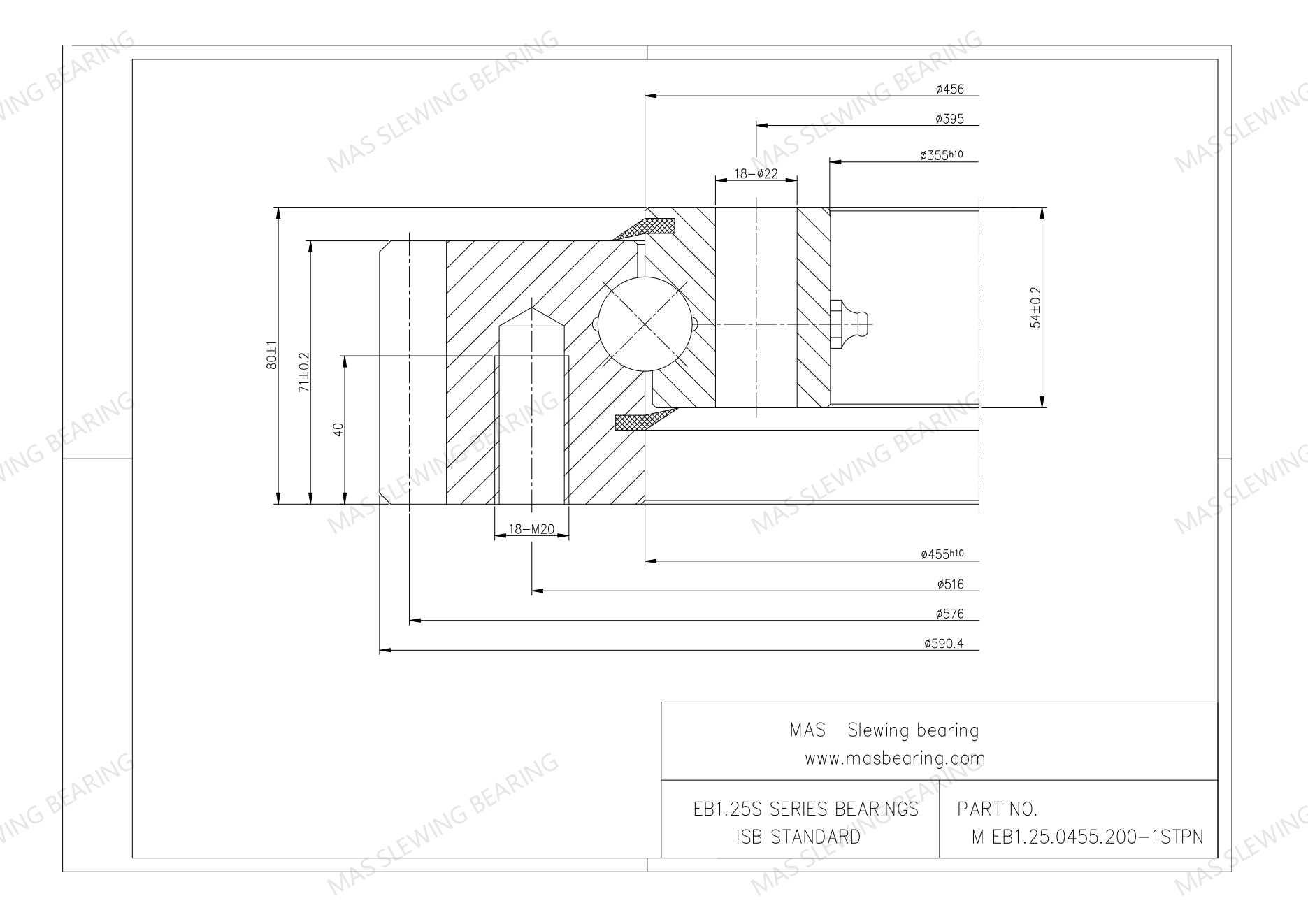

M EB1.25.0455.200-1STPN
| ISB PART NO. | EB1.25.0455.200-1STPN |
| MAS PART NO. | M EB1.25.0455.200-1STPN |
| Outside Diameter De(mm) | 590.4 |
| Internal Diameter On Outer Ring de(mm) | 454 |
| External Diameter On Inner Ring di(mm) | 456 |
| Internal Diameter Di(mm) | 355 |
| Bolt Circle In Out Ring Fe(mm) | 516 |
| Number Of Holes of Outer Ring Ne | 18 |
| Bolt Circle In Inner Ring Fi(mm) | 395 |
| Number Of Holes of Inner Ring Ni | 18 |
| Tooth Moudles(m) | 8 |
| Number Of Tooth Z | 72 |
| Dp(mm) | 576 |
| fz norm(KN) | 38.6 |
| fz max(KN) | 77.2 |
| Weight(KG) | 74 |
| Materiale | C45Q+T |
| Grease Nipples(G) | n.4/6-M10*1 |
