English
 |
1355
1598
External gear
Ball
233

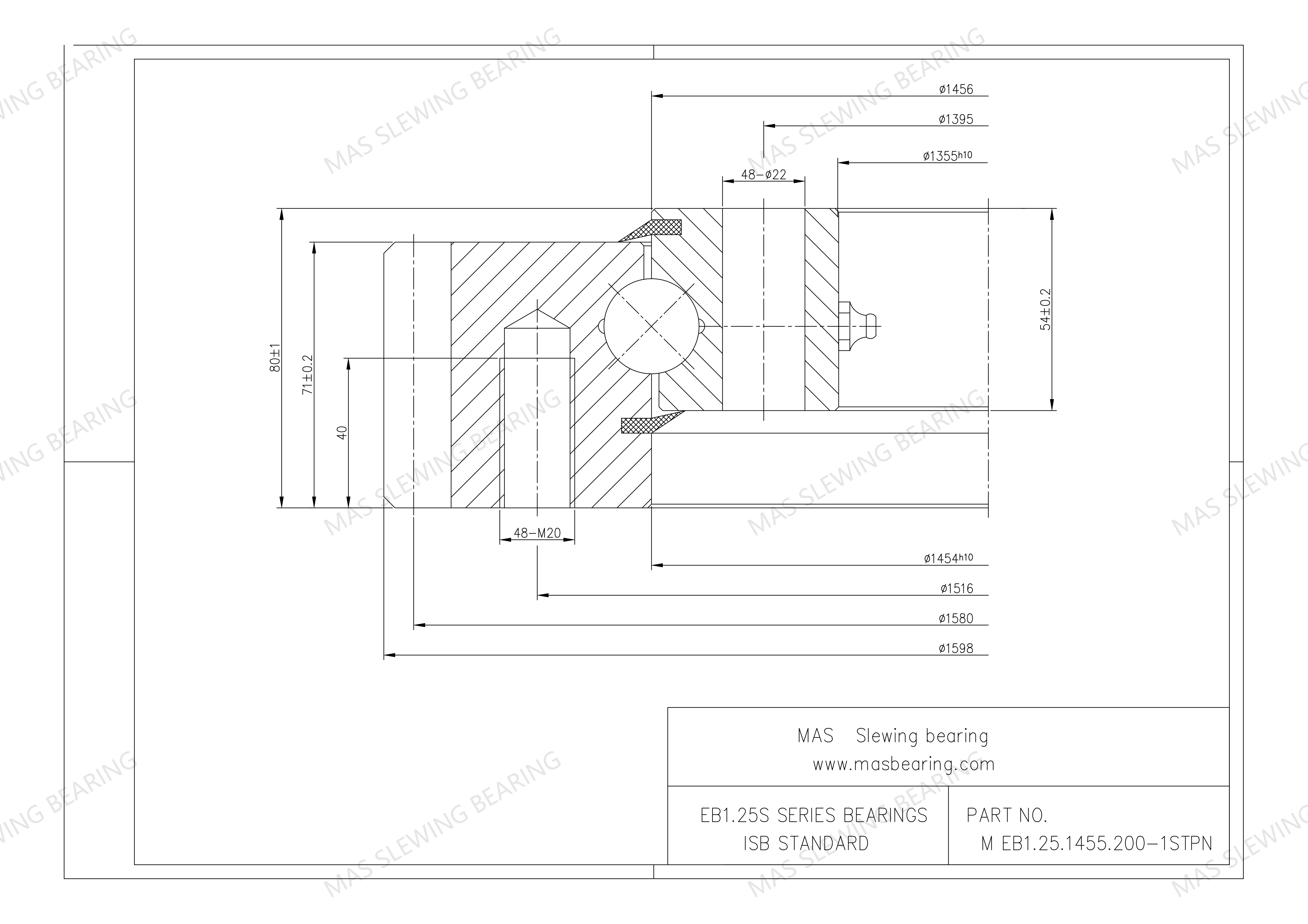

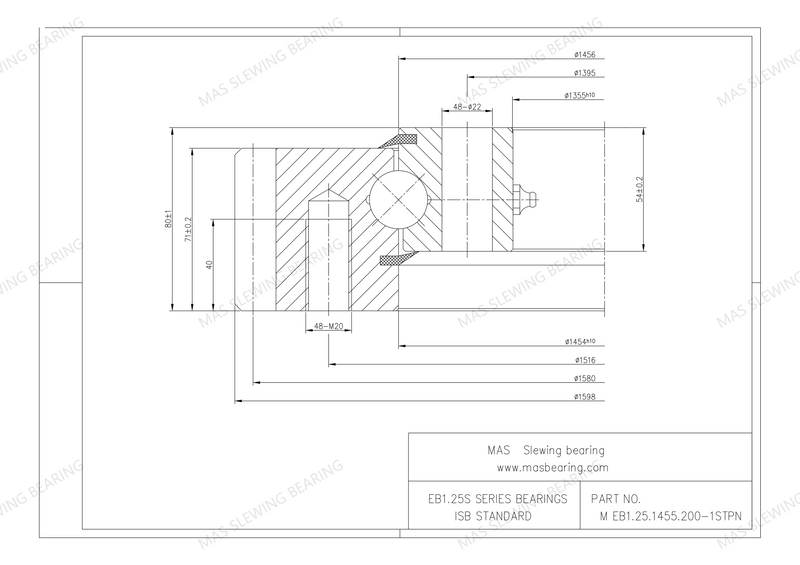

M EB1.25.1455.200-1STPN
| ISB PART NO. | EB1.25.1455.200-1STPN |
| MAS PART NO. | M EB1.25.1455.200-1STPN |
| Outside Diameter De(mm) | 1598 |
| Internal Diameter On Outer Ring de(mm) | 1454 |
| External Diameter On Inner Ring di(mm) | 1456 |
| Internal Diameter Di(mm) | 1355 |
| Bolt Circle In Out Ring Fe(mm) | 1516 |
| Number Of Holes of Outer Ring Ne | 48 |
| Bolt Circle In Inner Ring Fi(mm) | 1395 |
| Number Of Holes of Inner Ring Ni | 48 |
| Tooth Moudles(m) | 10 |
| Number Of Tooth Z | 158 |
| Dp(mm) | 1580 |
| fz norm(KN) | 48.3 |
| fz max(KN) | 96.6 |
| Weight(KG) | 233 |
| Materiale | C45Q+T |
| Grease Nipples(G) | n.4/6-M10*1 |
