Internal gear
Ball
180

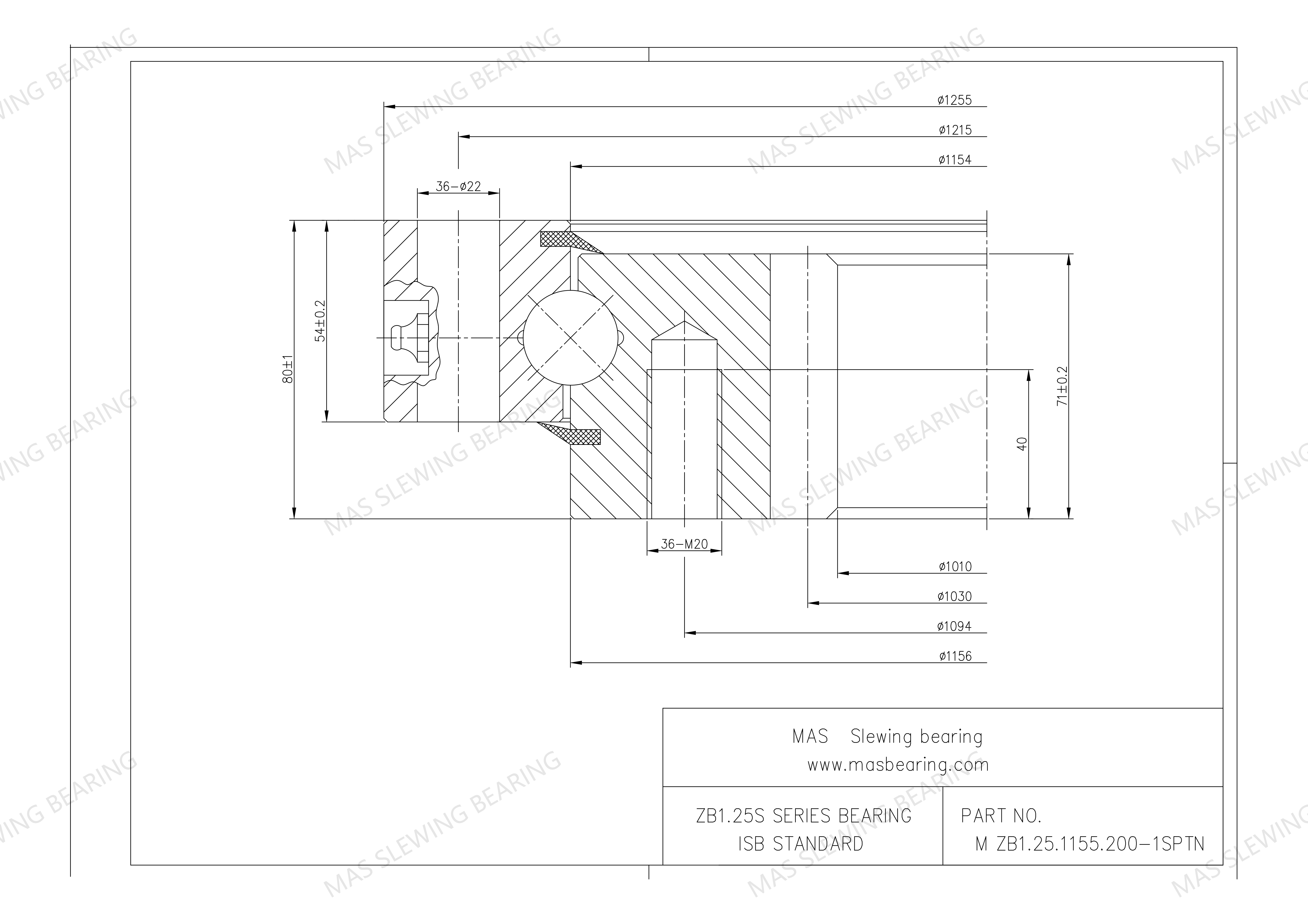

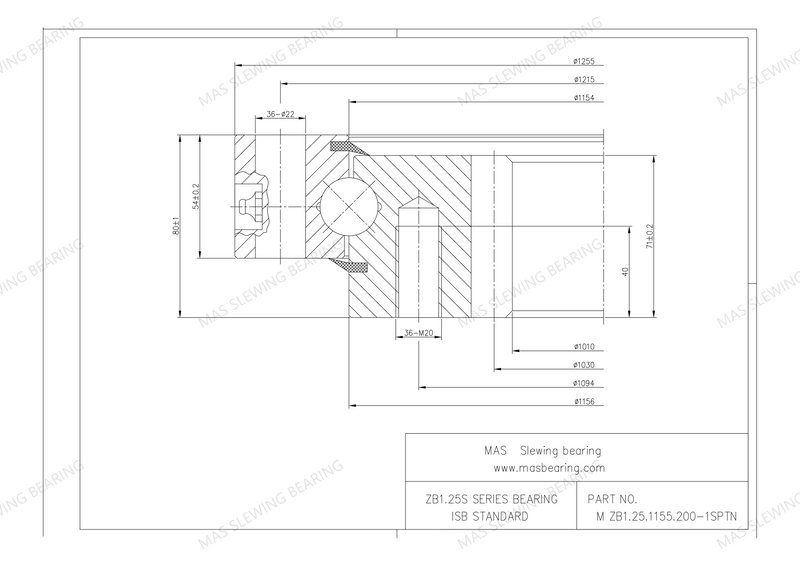

M ZB1.25.1155.200-1SPTN
| ISB PART NO. | ZB1.25.1155.200-1SPTN |
| MAS PART NO. | M ZB1.25.1155.200-1SPTN |
| Outside Diameter De(mm) | 1255 |
| Internal Diameter On Outer Ring de(mm) | 1154 |
| External Diameter On Inner Ring di(mm) | 1156 |
| Internal Diameter Di(mm) | 1010 |
| Bolt Circle In Out Ring Fe(mm) | 1215 |
| Number Of Holes of Outer Ring Ne | 36 |
| Bolt Circle In Inner Ring Fi(mm) | 1094 |
| Number Of Holes of Inner Ring Ni | 36 |
| Tooth Moudles(m) | 10 |
| Number Of Tooth Z | 103 |
| Dp(mm) | 1030 |
| fz norm(KN) | 50.3 |
| fz max(KN) | 100.6 |
| Weight(KG) | 180 |
| Materiale | C45Q+T |
| Grease Nipples(G) | n.4/6-M10*1 |
